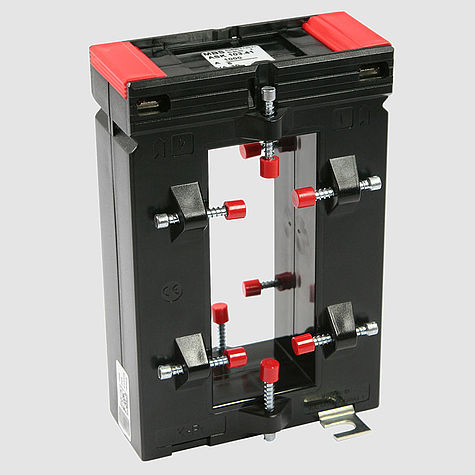

ASK 103.41 2U Plug-in current transformer, secondary switchable
Secondary switchable plug-in current transformers for primary nominal currents from 1000-500 A up to 2000-1000 A with a secondary nominal current of 5 A or 1 A (optionally 2 A), in the Accuracy class 1.
- Therm. Nominal continuous current Icth: 1.0 x IN
- Therm. Rated short-time current Ith: 60 x IN, 1 sec.
- Max. Operating voltage Um: 0.72 kV
- Insulation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
- Nominal frequency: 50 Hz
- Insulation class: E
- Rail 1: 103 x 41 mm
- Round conductor: 40 mm
- Width: 99 mm
- Height: 150 mm
- Overall depth: 58 mm
