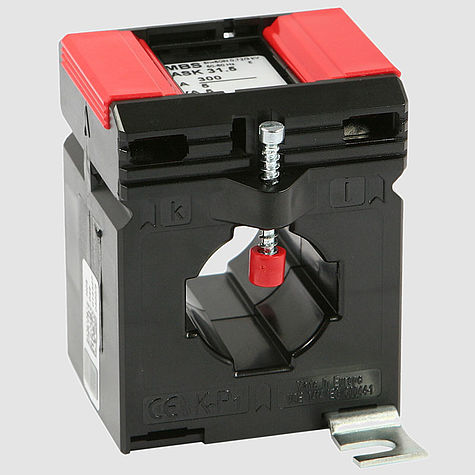

ASK 31.5 2U Plug-in current transformer, secondary switchable
Plug-in current transformers switchable on the secondary side for primary nominal currents from 150-75 A up to 600-300A with a secondary nominal current of 5 A or 1 A (optionally 2 A), in accuracy class 1 (optionally in class 0.5s and 0, 5).
- Therm. Nominal continuous current Icth: 1.0 x IN
- Therm. Rated short-time current Ith: 60 x IN, 1 sec.
- Max. Operating voltage Um: 0.72 kV
- Insulation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
- Nominal frequency: 50 Hz
- Insulation class: E
- Rail 1: 30 x 10 mm
- Rail 2: 2 x 20 x 10 mm
- Round conductor: 28 mm
- Overall width: 61 mm
- Height: 75.5 mm
- Overall depth: 68 mm
