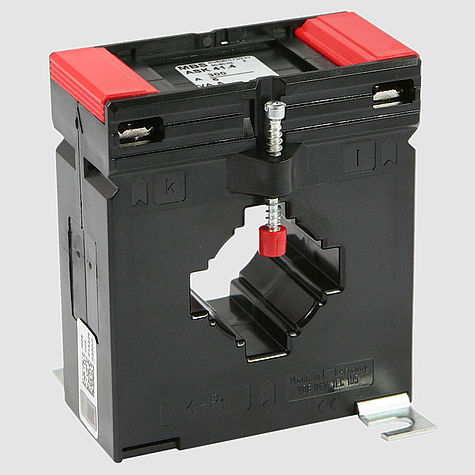

ASK 41.4 2U Plug-in current transformer, secondary switchable
Secondary switchable plug-in current transformers for primary nominal currents from 200-100 A up to 1000-500 A with a secondary nominal current of 5 A or 1 A (optional 2 A), in accuracy class 1 (optional in class 0.5s and 0 , 5).
- Therm. Nominal continuous current Icth: 1.0 x IN
- Therm. Rated short-time current Ith: 60 x IN, 1 sec.
- Max. Operating voltage Um: 0.72 kV
- Insulation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
- Nominal frequency: 50 Hz
- Insulation class: E
- Rail 1: 40 x 10 mm
- Rail 2: 2 x 30 x 5 mm
- Round conductor: 32 mm
- Overall width: 71 mm
- Height: 85.5 mm
- Overall depth: 58 mm
Secondary switchable plug-in current transformers for primary nominal currents from 200-100 A up to 1000-500 A with a secondary nominal current of 5 A or 1 A (optional 2 A), in accuracy class 1 (optional in class 0.5s and 0 , 5).
- Therm. Nominal continuous current Icth: 1.0 x IN
- Therm. Rated short-time current Ith: 60 x IN, 1 sec.
- Max. Operating voltage Um: 0.72 kV
- Insulation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
- Nominal frequency: 50 Hz
- Insulation class: E
- Rail 1: 40 x 10 mm
- Rail 2: 2 x 30 x 5 mm
- Round conductor: 32 mm
- Overall width: 71 mm
- Height: 85.5 mm
- Overall depth: 58 mm
