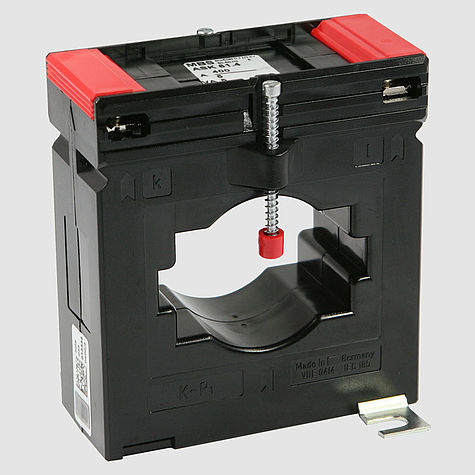

ASK 61.4 Plug-in current transformer

  • Therm. Nominal continuous current Icth: 1.0 x IN
  • Therm. Rated short-time current Ith: 60 x IN, 1 sec.
  • Max. Operating voltage Um: 0.72 kV
  • Insulation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal frequency: 50 Hz
  • Insulation class: E
  • Rail 1: 63 x 10 mm
  • Rail 2: 2 x 50 x 10 mm
  • Round conductor: 44 mm
  • Overall width: 96 mm
  • Height: 105.5 mm
  • Overall depth: 58 mm
  • Therm. Nominal continuous current Icth: 1.0 x IN
  • Therm. Rated short-time current Ith: 60 x IN, 1 sec.
  • Max. Operating voltage Um: 0.72 kV
  • Insulation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal frequency: 50 Hz
  • Insulation class: E
  • Rail 1: 63 x 10 mm
  • Rail 2: 2 x 50 x 10 mm
  • Round conductor: 44 mm
  • Overall width: 96 mm
  • Height: 105.5 mm
  • Overall depth: 58 mm
