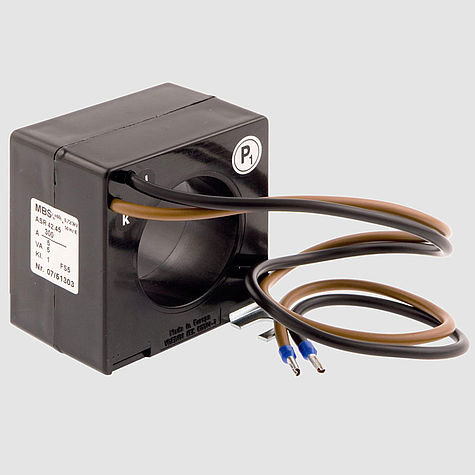

ASR 42.45 Tube current transformers
Tube current transformers for primary nominal currents from 150 A to 1000 A with a secondary nominal current of 5 A or 1 A (optionally 2 A), in accuracy class 1 with flexible 2.5 mm² copper lead wires (secondary connection cables).
- Therm. Nominal continuous current Icth: 1.0 x IN
- Therm. Rated short-time current Ith: 60 x IN, 1 sec.
- Max. Operating voltage Um: 0.72 kV
- Insulation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
- Nominal frequency: 50 Hz
- Insulation class: E
- Round conductor: 42 mm
- Overall width: 71 mm
- Height: 71 mm
- Overall depth: 45 mm
