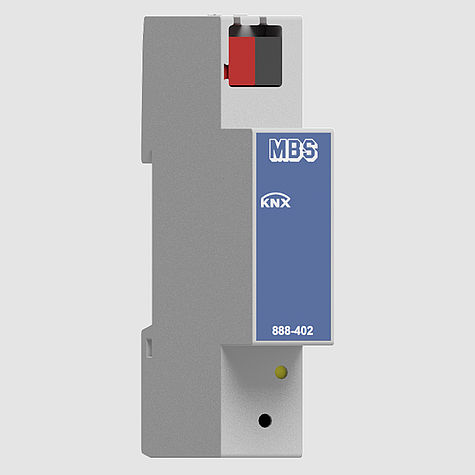

Communication modules with infrared interfaceKNX
The universal modules of communication are used to enhance the Meters with additional communication functions. The units are installed directly next to the Meter and communicate via the infrared interface equipped on the side. Supported protocols are Modbus RTU, KNX, LAN-TCP/IP and M-Bus. The communication module receives data through an infra-red interface (IrDA) – placed on its side at 9.600 baud which is coupled with the mirror interface placed on the measuring device.
Suitable 1/3-phase energy, power meters and network analysis
| Connection: | through side IR |
| Housing DIN modules: | 1 DU |
| Voltage range: | 230V AC +/- 20 % |
| Frequency range: | 45…65 Hz |
| BUS-software-protocol: | KNX |
The universal modules of communication are used to enhance the Meters with additional communication functions. The units are installed directly next to the Meter and communicate via the infrared interface equipped on the side. Supported protocols are Modbus RTU, KNX, LAN-TCP/IP and M-Bus. The communication module receives data through an infra-red interface (IrDA) - placed on its side at 9.600 baud which is coupled with the mirror interface placed on the measuring device.
Suitable 1/3-phase energy, power meters and network analysis
| Connection: | through side IR |
| Housing DIN modules: | 1 DU |
| Voltage range: | 230V AC +/- 20 % |
| Frequency range: | 45…65 Hz |
| BUS-software-protocol: | KNX |
