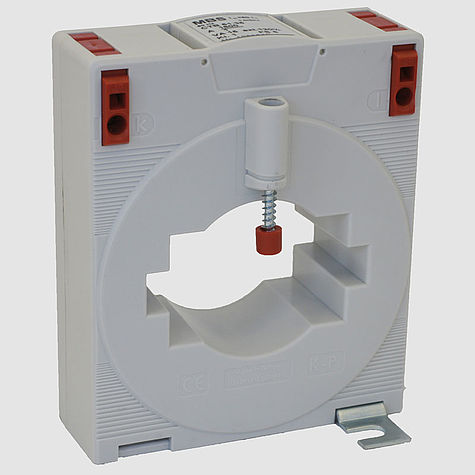

CTB 61.35 Plug-in current transformer

  • Therm. Nominal continuous current Icth: 1.2 x IN
  • Therm. Rated short-time current Ith: 60 x IN, 1 sec.
  • Max. Operating voltage Um: 1.2 kV
  • Insulation test voltage: 6 kV, Ueff, 50 Hz, 1 min.
  • Nominal frequency: 50 Hz
  • Insulation class: E
  • UL certified – Certificate Number – 20100426-E336996
  • Rail 1: 63 x 10 mm
  • Rail 2: 50 x 30 mm
  • Round conductor: 43.7 mm
  • Overall width: 95 mm
  • Height: 114.86 mm
  • Overall depth: 52 mm
  • Therm. Nominal continuous current Icth: 1.2 x IN
  • Therm. Rated short-time current Ith: 60 x IN, 1 sec.
  • Max. Operating voltage Um: 1.2 kV
  • Insulation test voltage: 6 kV, Ueff, 50 Hz, 1 min.
  • Nominal frequency: 50 Hz
  • Insulation class: E
  • UL certified - Certificate Number - 20100426-E336996
  • Rail 1: 63 x 10 mm
  • Rail 2: 50 x 30 mm
  • Round conductor: 43.7 mm
  • Overall width: 95 mm
  • Height: 114.86 mm
  • Overall depth: 52 mm
