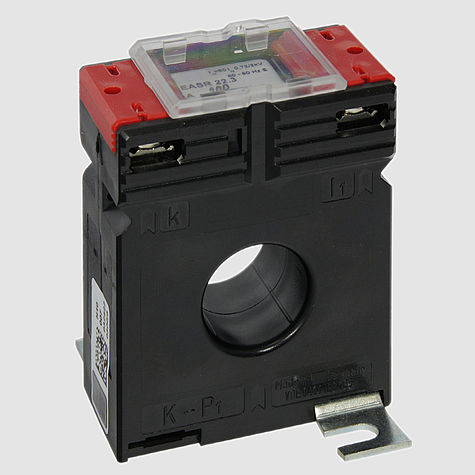

EASR 22.3 Tube current transformers – offsetting for tariff application
Tube current transformers for primary nominal currents from 100 A to 600 A with a secondary nominal current of 5 A or 1 A, in accuracy classes 0.2, 0.5s and 0.5, with type approval by PTB Braunschweig for use billing purposes.
- Therm. Nominal continuous current Icth: 1.2 x IN
- Therm. Rated short-time current Ith: 60 x IN, 1 sec.
- Max. Operating voltage Um: 0.72 kV
- Insulation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
- Nominal frequency: 50 Hz
- Insulation class: E
- Round conductor: 22.5 m
- Width: 61 mm
- Height: 78.5 mm
- Overall depth: 35 mm
- Declaration of conformity: in the download area
