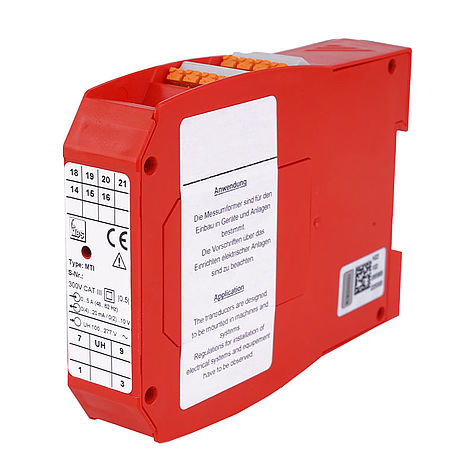

MTI Measuring transducer for sinusoidal and non-sinusoidal alternating current
With digital output via Modbus-RTU / RS 485
Characteristics / uses
- Measuring output as double output, switchable: 0(4) … 20 mA and 0(2) … 10 V
- With auxillary power supply
- Housing for 35 mm nach DIN EN 60 715AC rail
- Measuring output: Unipolar and live-zero output variables
- AC or DC auxillary energy
- Measuring range and outputs easily switchable via dip switch
Application:
Measuring transducer for the conversion of sinusoidal and non-sinusoidal alternating (distorted) current. As output signal is a load independent DC current signal and a load independent voltage signal, which is proportional to the measured value of the input variable. Both outputs are switchable between 0 … 20 mA and 4 … 20 mA or 0 … 10 V und 2 … 10 V.
With digital output via Modbus-RTU / RS 485
Characteristics / uses
- Measuring output as double output, switchable: 0(4) ... 20 mA and 0(2) ... 10 V
- With auxillary power supply
- Housing for 35 mm nach DIN EN 60 715AC rail
- Measuring output: Unipolar and live-zero output variables
- AC or DC auxillary energy
- Measuring range and outputs easily switchable via dip switch
Application:
Measuring transducer for the conversion of sinusoidal and non-sinusoidal alternating (distorted) current. As output signal is a load independent DC current signal and a load independent voltage signal, which is proportional to the measured value of the input variable. Both outputs are switchable between 0 ... 20 mA and 4 ... 20 mA or 0 ... 10 V und 2 ... 10 V.
