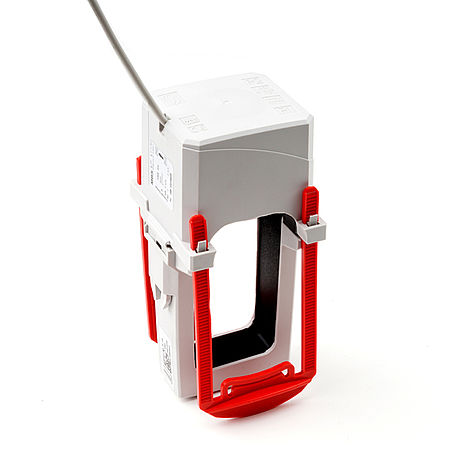

XKBR 44 Split-core current transformer for power quality
Technical Data:
Length of connection cable: Sec. 1A: 2.5 m, cross section 2×0.75 mm² (XKBR 18; XKBR 32; XKBR 44) (color coded) 2.5 m, cross section 2×0.5 mm² (XKBR 18S; XKBR 18L; XKBR 28; XKBR 42; XKBR 42L)
Sec. 5A: 0.5 m, cross section 2×1.5 mm² (XKBR 18L; XKBR 28; XKBR 32; XKBR 44; XKBR 42; XKBR 42L)
- Operating temperature: -5°C < T < +50°C
- Storage temperature: -25°C < T < +70°C
- Therm. nominal continuous rated current Icth: 1.2 x IN
- Therm. nominal short-time current Ith: 60 x IN, 1 sec.
- Max. operating voltage Um: 0.72 kV
- Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
- Rated frequency: 50 Hz
- Isolation class: E
- Applicable technical standard: DIN EN 61869, part 1 + 2
Dimensions:
- Circular conductor: 44 mm
- Installation width: 72,2 mm
- Installation height: 120,6 mm
- Total installation depth: 98,1 mm
- CT installation depth: 85 mm
Technical Data:
Length of connection cable: Sec. 1A: 2.5 m, cross section 2x0.75 mm² (XKBR 18; XKBR 32; XKBR 44) (color coded) 2.5 m, cross section 2x0.5 mm² (XKBR 18S; XKBR 18L; XKBR 28; XKBR 42; XKBR 42L)
Sec. 5A: 0.5 m, cross section 2x1.5 mm² (XKBR 18L; XKBR 28; XKBR 32; XKBR 44; XKBR 42; XKBR 42L)
- Operating temperature: -5°C < T < +50°C
- Storage temperature: -25°C < T < +70°C
- Therm. nominal continuous rated current Icth: 1.2 x IN
- Therm. nominal short-time current Ith: 60 x IN, 1 sec.
- Max. operating voltage Um: 0.72 kV
- Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
- Rated frequency: 50 Hz
- Isolation class: E
- Applicable technical standard: DIN EN 61869, part 1 + 2
Dimensions:
- Circular conductor: 44 mm
- Installation width: 72,2 mm
- Installation height: 120,6 mm
- Total installation depth: 98,1 mm
- CT installation depth: 85 mm
